Flutter Multi-Wayed SVG Styling

Multiple approaches to styling SVGs in Flutter.

Introduction

Yes, it never gets as basic as this. However, while working with SVGs can seem simple enough, can you tell me 4 different ways of styling an SVG?

I like the way you are looking to the ceiling to try and think of the possible ways to style an SVG. I’ll make it easier for you in this article :)

In this article, we’ll work with the SVG image below gotten from undraw.co and try to style it by changing its color properties using different methods.

1. Flutter SVG Package

You would have come across this package before as it’s quite popular in the Flutter world. The flutter_svg package allows us to work with SVGs in our app in an easy and straight-forward manner.

Setup

1. SVG Assets Folder

   Add an assets folder in your root project directory. Next, add a sub folder called images and add the SVG image of your liking inside this folder as below.

2. Pubspec.yaml

   Next, add the flutter_svg package to your pubspec.yaml file and import your assets in the pubspec.yaml file as shown below.

   dependencies:
     {...}
     flutter_svg: ^2.0.9


   flutter:

     uses-material-design: true

     assets:
       - assets/images/


3. Home.dart

   Finally, we can now work with our SVG image. The flutter_svg package comes in-built with powerful attributes such as semanticLabel, colorFilter, width, height etc. For this tutorial, we’ll focus on the colorFilter attribute to help us change the SVG colour.

   return Scaffold(
     body: Center(
       child: SvgPicture.asset(
         'assets/images/undraw_pancakes.svg',
         colorFilter: const ColorFilter.mode(Colors.red, BlendMode.srcIn),
         semanticsLabel: 'Sweet Pancakes',
         width: 200,
         height: 200,
       ),
     ),
   );


4. Result

   Here is the result of this code:



Yeah I know, not as pleasing as you had hoped. Well, that’s one of the limitations of using the flutter_svg package. Whereas working with simple SVGs such as Icons is simple enough to add a color and style them, more complex SVGs like this one could really pose a huge problem to achieve a more fine-tuned styling.

Let’s proceed and try find a solution for this.

2. Flutter ColorFiltered Widget

Similar to the colorFilter attribute of the flutter_svg package, you can also wrap your SvgPicture.asset widget with the ColorFiltered widget. This will still achieve the same results as above.

Home.dart

return Scaffold(
  body: Center(
    child: ColorFiltered(
      colorFilter: const ColorFilter.mode(Colors.red, BlendMode.srcIn),
      child: SvgPicture.asset(
        'assets/images/undraw_pancakes.svg',
        semanticsLabel: 'Sweet Pancakes',
        width: 200,
        height: 200,
      ),
    ),
  ),
);

Here is the result of this code:

However, this is a bit more flexible as you can wrap the ColorFIltered widget around most Widgets in flutter to apply a color to them.

It’s a matter of preference really :)

3.Flutter Shape Maker

When working with simpler SVGs such as icons, the ColorFiltered widget and the colorFilter attribute of the flutter_svg package work absolutely great!

However, more complex SVGs like the one we are working with require a more fine-tuned approach to achieve beautiful results. That’s where Flutter Shape Maker comes into play!!

Flutter Shape Maker helps you Auto-Generate Responsive code for Flutter Custom Paint Widget directly from Canvas or SVGs.

Setup

1. Flutter Shape Maker Website

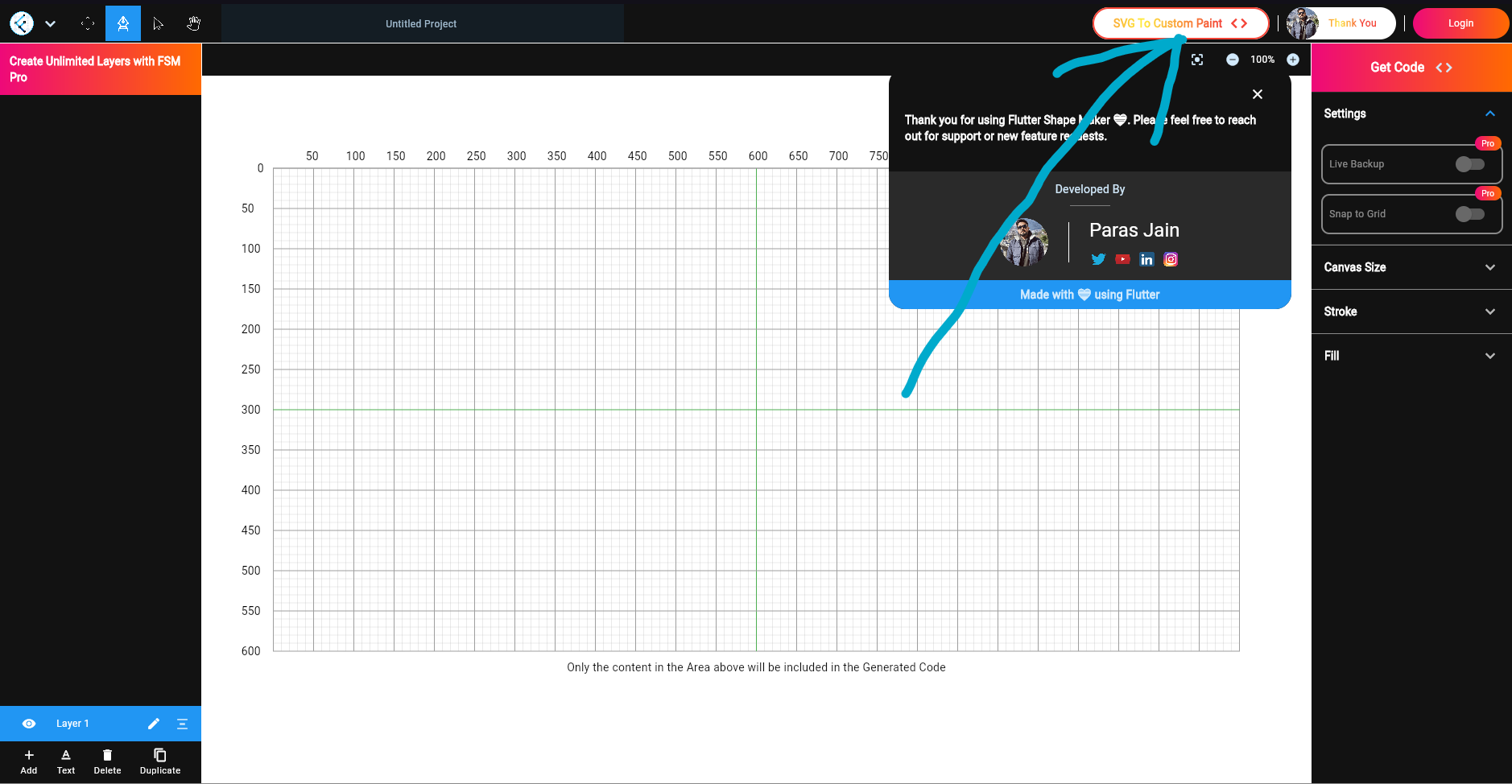

   Firstly, visit the Flutter Shape Maker website and click on the icon on the top right to start generating Custom Paint code from your SVG image.

   Click on the SVG To Custom Paint <> button to open a popup window to help you import your SVG image.


2. Import SVG Image

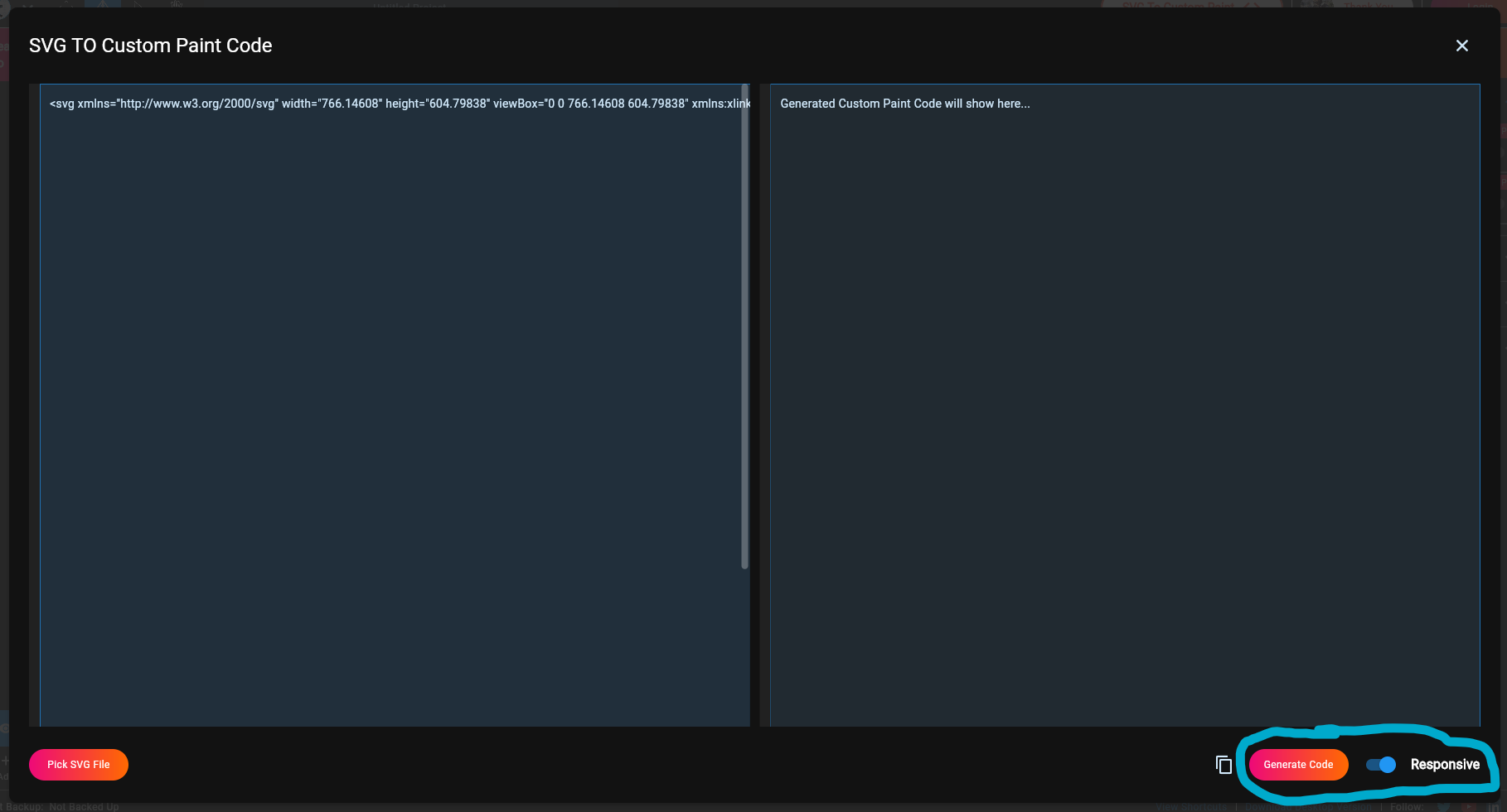

   Click on Pick SVG File button at the bottom left to pick your SVG image.



   Click on Generate Code.



   Make sure to toggle it as Responsive for the best results :)

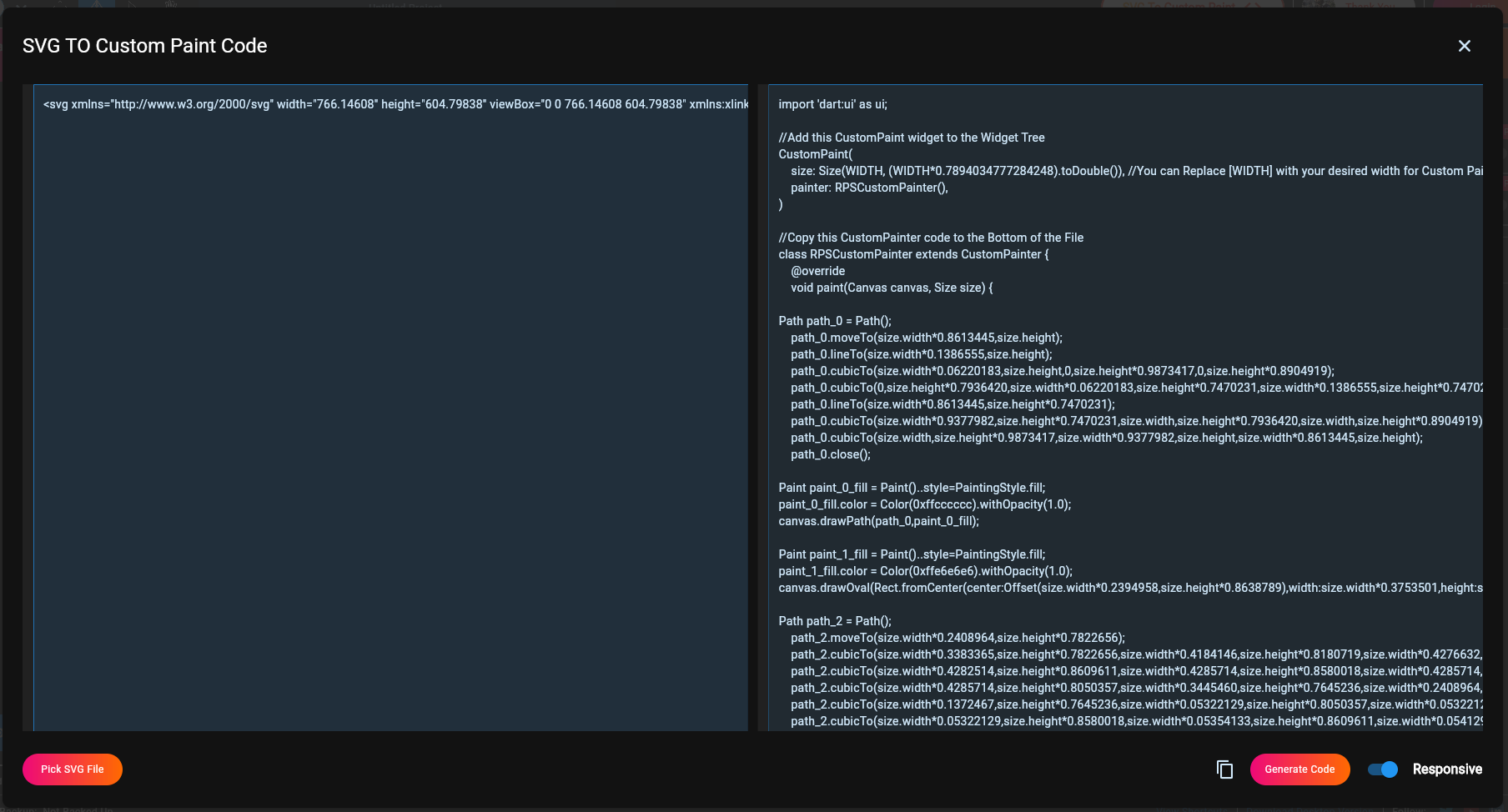

   Finally, you can copy the Generated code and paste it into your Flutter code as shown below.


3. Custom Paint Class

   In our Flutter code, copy the generated code in a new dart file. Below is just a snippet of the generated class.

   import 'package:flutter/material.dart';

   //Copy this CustomPainter code to the Bottom of the File
   class FlutterShapeMakerCustomPaint extends CustomPainter {
     @override
     void paint(Canvas canvas, Size size) {
       Path path_0 = Path();
       path_0.moveTo(size.width * 0.8613445, size.height);
       path_0.lineTo(size.width * 0.1386555, size.height);
       path_0.cubicTo(size.width * 0.06220183, size.height, 0,
           size.height * 0.9873417, 0, size.height * 0.8904919);
       path_0.cubicTo(
           0,
           size.height * 0.7936420,
           size.width * 0.06220183,
           size.height * 0.7470231,
           size.width * 0.1386555,
           size.height * 0.7470231);
       path_0.lineTo(size.width * 0.8613445, size.height * 0.7470231);
       path_0.cubicTo(size.width * 0.9377982, size.height * 0.7470231, size.width,
           size.height * 0.7936420, size.width, size.height * 0.8904919);
       path_0.cubicTo(size.width, size.height * 0.9873417, size.width * 0.9377982,
           size.height, size.width * 0.8613445, size.height);
       path_0.close();

       Paint paint_0_fill = Paint()..style = PaintingStyle.fill;
       paint_0_fill.color = Color(0xffcccccc).withOpacity(1.0);
       canvas.drawPath(path_0, paint_0_fill);

       Paint paint_1_fill = Paint()..style = PaintingStyle.fill;
       paint_1_fill.color = Color(0xffe6e6e6).withOpacity(1.0);
       canvas.drawOval(
           Rect.fromCenter(
               center: Offset(size.width * 0.2394958, size.height * 0.8638789),
               width: size.width * 0.3753501,
               height: size.height * 0.1809685),
           paint_1_fill);

       Path path_2 = Path();
       path_2.moveTo(size.width * 0.2408964, size.height * 0.7822656);
       path_2.cubicTo(
           size.width * 0.3383365,
           size.height * 0.7822656,
           size.width * 0.4184146,
           size.height * 0.8180719,
           size.width * 0.4276632,
           size.height * 0.8638789);
       path_2.cubicTo(
           size.width * 0.4282514,
           size.height * 0.8609611,
           size.width * 0.4285714,
           size.height * 0.8580018,
           size.width * 0.4285714,
           size.height * 0.8550078);
       path_2.cubicTo(
           size.width * 0.4285714,
           size.height * 0.8050357,
           size.width * 0.3445460,
           size.height * 0.7645236,
           size.width * 0.2408964,
           size.height * 0.7645236);
       path_2.cubicTo(
           size.width * 0.1372467,
           size.height * 0.7645236,
           size.width * 0.05322129,
           size.height * 0.8050357,
           size.width * 0.05322129,
           size.height * 0.8550078);
       path_2.cubicTo(
           size.width * 0.05322129,
           size.height * 0.8580018,
           size.width * 0.05354133,
           size.height * 0.8609611,
           size.width * 0.05412947,
           size.height * 0.8638789);
       path_2.cubicTo(
           size.width * 0.06337808,
           size.height * 0.8180719,
           size.width * 0.1434562,
           size.height * 0.7822656,
           size.width * 0.2408964,
           size.height * 0.7822656);
       path_2.close();

       Paint paint_2_fill = Paint()..style = PaintingStyle.fill;
       paint_2_fill.color = Color(0xffb3b3b3).withOpacity(1.0);
       canvas.drawPath(path_2, paint_2_fill);

       Paint paint_3_fill = Paint()..style = PaintingStyle.fill;
       paint_3_fill.color = Color(0xffe6e6e6).withOpacity(1.0);
       canvas.drawOval(
           Rect.fromCenter(
               center: Offset(size.width * 0.7829132, size.height * 0.8638789),
               width: size.width * 0.3753501,
               height: size.height * 0.1809685),
           paint_3_fill);

       Path path_4 = Path();
       path_4.moveTo(size.width * 0.7815126, size.height * 0.7822656);
       path_4.cubicTo(
           size.width * 0.8789528,
           size.height * 0.7822656,
           size.width * 0.9590309,
           size.height * 0.8180719,
           size.width * 0.9682795,
           size.height * 0.8638789);
       path_4.cubicTo(
           size.width * 0.9688676,
           size.height * 0.8609611,
           size.width * 0.9691877,
           size.height * 0.8580018,
           size.width * 0.9691877,
           size.height * 0.8550078);
       path_4.cubicTo(
           size.width * 0.9691877,
           size.height * 0.8050357,
           size.width * 0.8851623,
           size.height * 0.7645236,
           size.width * 0.7815126,
           size.height * 0.7645236);
       path_4.cubicTo(
           size.width * 0.6778629,
           size.height * 0.7645236,
           size.width * 0.5938375,
           size.height * 0.8050357,
           size.width * 0.5938375,
           size.height * 0.8550078);
       path_4.cubicTo(
           size.width * 0.5938375,
           size.height * 0.8580018,
           size.width * 0.5941576,
           size.height * 0.8609611,
           size.width * 0.5947457,
           size.height * 0.8638789);
       path_4.cubicTo(
           size.width * 0.6039943,
           size.height * 0.8180719,
           size.width * 0.6840725,
           size.height * 0.7822656,
           size.width * 0.7815126,
           size.height * 0.7822656);
       path_4.close();

       Paint paint_4_fill = Paint()..style = PaintingStyle.fill;
       paint_4_fill.color = Color(0xffb3b3b3).withOpacity(1.0);
       canvas.drawPath(path_4, paint_4_fill);

       Path path_5 = Path();
       path_5.moveTo(size.width * 0.4453782, size.height * 0.6987820);
       path_5.cubicTo(
           size.width * 0.4453782,
           size.height * 0.6775491,
           size.width * 0.3242095,
           size.height * 0.6555318,
           size.width * 0.2337025,
           size.height * 0.6555318);
       path_5.cubicTo(
           size.width * 0.1431955,
           size.height * 0.6555318,
           size.width * 0.06982407,
           size.height * 0.7015771,
           size.width * 0.06982407,
           size.height * 0.7228087);
       path_5.cubicTo(
           size.width * 0.06982407,
           size.height * 0.7317275,
           size.width * 0.08719315,
           size.height * 0.7418032,
           size.width * 0.1140427,
           size.height * 0.7504887);
       path_5.cubicTo(
           size.width * 0.07689381,
           size.height * 0.7655834,
           size.width * 0.07719948,
           size.height * 0.7746250,
           size.width * 0.07719948,
           size.height * 0.7867058);
       path_5.cubicTo(
           size.width * 0.07719948,
           size.height * 0.7961639,
           size.width * 0.07267142,
           size.height * 0.8179903,
           size.width * 0.1023317,
           size.height * 0.8270135);
       path_5.cubicTo(
           size.width * 0.07465529,
           size.height * 0.8408194,
           size.width * 0.07850472,
           size.height * 0.8575154,
           size.width * 0.07850472,
           size.height * 0.8677245);
       path_5.cubicTo(
           size.width * 0.07850472,
           size.height * 0.8889560,
           size.width * 0.1560927,
           size.height * 0.9159902,
           size.width * 0.2466002,
           size.height * 0.9159902);
       path_5.cubicTo(
           size.width * 0.3371078,
           size.height * 0.9159902,
           size.width * 0.4035080,
           size.height * 0.8757299,
           size.width * 0.4035080,
           size.height * 0.8544969);
       path_5.cubicTo(
           size.width * 0.4035080,
           size.height * 0.8450055,
           size.width * 0.4090143,
           size.height * 0.8238081,
           size.width * 0.3741480,
           size.height * 0.8160389);
       path_5.cubicTo(
           size.width * 0.4068250,
           size.height * 0.8009442,
           size.width * 0.4061185,
           size.height * 0.7935224,
           size.width * 0.4061185,
           size.height * 0.7833989);
       path_5.cubicTo(
           size.width * 0.4061185,
           size.height * 0.7743771,
           size.width * 0.4067987,
           size.height * 0.7555613,
           size.width * 0.3746870,
           size.height * 0.7480053);
       path_5.cubicTo(
           size.width * 0.4161155,
           size.height * 0.7315115,
           size.width * 0.4453781,
           size.height * 0.7104945,
           size.width * 0.4453781,
           size.height * 0.6987820);
       path_5.close();

       Paint paint_5_fill = Paint()..style = PaintingStyle.fill;
       paint_5_fill.color = Color(0xff3f3d56).withOpacity(1.0);
       canvas.drawPath(path_5, paint_5_fill);

       Path path_6 = Path();
       path_6.moveTo(size.width * 0.2649382, size.height * 0.5819130);
       path_6.cubicTo(
           size.width * 0.2702740,
           size.height * 0.5757709,
           size.width * 0.2787309,
           size.height * 0.5744660,
           size.width * 0.2850746,
           size.height * 0.5788059);
       path_6.cubicTo(
           size.width * 0.2914184,
           size.height * 0.5831459,
           size.width * 0.2834185,
           size.height * 0.6025528,
           size.width * 0.2822902,
           size.height * 0.6115733);
       path_6.cubicTo(
           size.width * 0.2818818,
           size.height * 0.6148379,
           size.width * 0.2773981,
           size.height * 0.6528519,
           size.width * 0.2772490,
           size.height * 0.6561518);
       path_6.cubicTo(
           size.width * 0.2770999,
           size.height * 0.6594517,
           size.width * 0.3057067,
           size.height * 0.6532297,
           size.width * 0.3080720,
           size.height * 0.6546250);
       path_6.cubicTo(
           size.width * 0.3114885,
           size.height * 0.6566403,
           size.width * 0.3225614,
           size.height * 0.6468590,
           size.width * 0.3244786,
           size.height * 0.6427486);
       path_6.cubicTo(
           size.width * 0.3310923,
           size.height * 0.6285692,
           size.width * 0.3080956,
           size.height * 0.5797729,
           size.width * 0.2979330,
           size.height * 0.5695008);
       path_6.cubicTo(
           size.width * 0.2877704,
           size.height * 0.5592287,
           size.width * 0.2721843,
           size.height * 0.5592341,
           size.width * 0.2615903,
           size.height * 0.5687812);

       Paint paint_6_fill = Paint()..style = PaintingStyle.fill;
       paint_6_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_6, paint_6_fill);

       Path path_7 = Path();
       path_7.moveTo(size.width * 0.2058902, size.height * 0.5819130);
       path_7.cubicTo(
           size.width * 0.2005543,
           size.height * 0.5757709,
           size.width * 0.1920974,
           size.height * 0.5744660,
           size.width * 0.1857537,
           size.height * 0.5788059);
       path_7.cubicTo(
           size.width * 0.1794100,
           size.height * 0.5831459,
           size.width * 0.1874098,
           size.height * 0.6025528,
           size.width * 0.1885381,
           size.height * 0.6115733);
       path_7.cubicTo(
           size.width * 0.1889465,
           size.height * 0.6148379,
           size.width * 0.1942485,
           size.height * 0.6542942,
           size.width * 0.1943977,
           size.height * 0.6575940);
       path_7.cubicTo(
           size.width * 0.1945468,
           size.height * 0.6608939,
           size.width * 0.1744969,
           size.height * 0.6740133,
           size.width * 0.1721315,
           size.height * 0.6754085);
       path_7.cubicTo(
           size.width * 0.1687150,
           size.height * 0.6774238,
           size.width * 0.1482669,
           size.height * 0.6468590,
           size.width * 0.1463497,
           size.height * 0.6427486);
       path_7.cubicTo(
           size.width * 0.1397360,
           size.height * 0.6285692,
           size.width * 0.1627328,
           size.height * 0.5797729,
           size.width * 0.1728953,
           size.height * 0.5695008);
       path_7.cubicTo(
           size.width * 0.1830579,
           size.height * 0.5592287,
           size.width * 0.1986441,
           size.height * 0.5592341,
           size.width * 0.2092380,
           size.height * 0.5687812);

       Paint paint_7_fill = Paint()..style = PaintingStyle.fill;
       paint_7_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_7, paint_7_fill);

       Paint paint_8_fill = Paint()..style = PaintingStyle.fill;
       paint_8_fill.color = Color(0xff3f3d56).withOpacity(1.0);
       canvas.drawRRect(
           RRect.fromRectAndCorners(
               Rect.fromLTWH(size.width * 0.1800391, size.height * 0.5741461,
                   size.width * 0.1104840, size.height * 0.08232873),
               bottomRight: Radius.circular(size.width * 0.006279507),
               bottomLeft: Radius.circular(size.width * 0.006279507),
               topLeft: Radius.circular(size.width * 0.006279507),
               topRight: Radius.circular(size.width * 0.006279507)),
           paint_8_fill);

       Path path_9 = Path();
       path_9.moveTo(size.width * 0.1964748, size.height * 0.2162677);
       path_9.lineTo(size.width * 0.2119762, size.height * 0.4304595);
       path_9.cubicTo(
           size.width * 0.2119762,
           size.height * 0.4304595,
           size.width * 0.1990852,
           size.height * 0.4586657,
           size.width * 0.2084605,
           size.height * 0.4705421);
       path_9.cubicTo(
           size.width * 0.2084605,
           size.height * 0.4705421,
           size.width * 0.1908819,
           size.height * 0.4868720,
           size.width * 0.2014291,
           size.height * 0.5002329);
       path_9.cubicTo(
           size.width * 0.2014291,
           size.height * 0.5002329,
           size.width * 0.1861943,
           size.height * 0.5121092,
           size.width * 0.1955695,
           size.height * 0.5239855);
       path_9.cubicTo(
           size.width * 0.2021322,
           size.height * 0.5322989,
           size.width * 0.1980129,
           size.height * 0.5570911,
           size.width * 0.1949507,
           size.height * 0.5712181);
       path_9.cubicTo(
           size.width * 0.1924641,
           size.height * 0.5826900,
           size.width * 0.1750720,
           size.height * 0.6403185,
           size.width * 0.1803348,
           size.height * 0.6501713);
       path_9.cubicTo(
           size.width * 0.1863624,
           size.height * 0.6614559,
           size.width * 0.2400656,
           size.height * 0.6620549,
           size.width * 0.2623679,
           size.height * 0.6575940);
       path_9.cubicTo(
           size.width * 0.3069001,
           size.height * 0.6486868,
           size.width * 0.2729150,
           size.height * 0.5625835,
           size.width * 0.2729150,
           size.height * 0.5625835);
       path_9.cubicTo(
           size.width * 0.2729150,
           size.height * 0.5625835,
           size.width * 0.2600241,
           size.height * 0.5091401,
           size.width * 0.2518208,
           size.height * 0.5091401);
       path_9.cubicTo(
           size.width * 0.2436175,
           size.height * 0.5091401,
           size.width * 0.2506489,
           size.height * 0.4868720,
           size.width * 0.2459613,
           size.height * 0.4809339);
       path_9.cubicTo(
           size.width * 0.2412736,
           size.height * 0.4749957,
           size.width * 0.2459613,
           size.height * 0.4573683,
           size.width * 0.2412736,
           size.height * 0.4513366);
       path_9.cubicTo(
           size.width * 0.2365860,
           size.height * 0.4453049,
           size.width * 0.2436174,
           size.height * 0.4291386,
           size.width * 0.2365860,
           size.height * 0.4260877);
       path_9.cubicTo(
           size.width * 0.2295546,
           size.height * 0.4230368,
           size.width * 0.2216706,
           size.height * 0.2288863,
           size.width * 0.2216706,
           size.height * 0.2288863);
       path_9.lineTo(size.width * 0.1964748, size.height * 0.2162678);
       path_9.close();

       Paint paint_9_fill = Paint()..style = PaintingStyle.fill;
       paint_9_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_9, paint_9_fill);

       Path path_10 = Path();
       path_10.moveTo(size.width * 0.4309800, size.height * 0.6807948);
       path_10.cubicTo(
           size.width * 0.4298041,
           size.height * 0.6722434,
           size.width * 0.4256961,
           size.height * 0.6659376,
           size.width * 0.4212256,
           size.height * 0.6629611);
       path_10.cubicTo(
           size.width * 0.4167555,
           size.height * 0.6599845,
           size.width * 0.4119092,
           size.height * 0.6597897,
           size.width * 0.4071615,
           size.height * 0.6596273);
       path_10.cubicTo(
           size.width * 0.2901568,
           size.height * 0.6405342,
           size.width * 0.1905779,
           size.height * 0.6357254,
           size.width * 0.1399098,
           size.height * 0.6710107);
       path_10.cubicTo(
           size.width * 0.1399098,
           size.height * 0.6710107,
           size.width * 0.1383066,
           size.height * 0.6691260,
           size.width * 0.1415374,
           size.height * 0.6757022);
       path_10.cubicTo(
           size.width * 0.1447683,
           size.height * 0.6822781,
           size.width * 0.1493190,
           size.height * 0.6859518,
           size.width * 0.1532430,
           size.height * 0.6910618);
       path_10.cubicTo(
           size.width * 0.1629470,
           size.height * 0.7036984,
           size.width * 0.1686914,
           size.height * 0.7261524,
           size.width * 0.1678397,
           size.height * 0.7481193);
       path_10.cubicTo(
           size.width * 0.1674801,
           size.height * 0.7573913,
           size.width * 0.1660361,
           size.height * 0.7666099,
           size.width * 0.1666167,
           size.height * 0.7758429);
       path_10.cubicTo(
           size.width * 0.1671973,
           size.height * 0.7850759,
           size.width * 0.1707394,
           size.height * 0.7947507,
           size.width * 0.1757395,
           size.height * 0.7949239);
       path_10.cubicTo(
           size.width * 0.1813314,
           size.height * 0.7951172,
           size.width * 0.1850535,
           size.height * 0.7836186,
           size.width * 0.1855078,
           size.height * 0.7732570);
       path_10.cubicTo(
           size.width * 0.1860089,
           size.height * 0.7618237,
           size.width * 0.1840892,
           size.height * 0.7505220,
           size.width * 0.1837363,
           size.height * 0.7390699);
       path_10.cubicTo(
           size.width * 0.1833834,
           size.height * 0.7276175,
           size.width * 0.1852198,
           size.height * 0.7144882,
           size.width * 0.1907212,
           size.height * 0.7092906);
       path_10.cubicTo(
           size.width * 0.1967340,
           size.height * 0.7036098,
           size.width * 0.2038787,
           size.height * 0.7099142,
           size.width * 0.2097433,
           size.height * 0.7161068);
       path_10.cubicTo(
           size.width * 0.2168054,
           size.height * 0.7235640,
           size.width * 0.2238675,
           size.height * 0.7310214,
           size.width * 0.2309299,
           size.height * 0.7384786);
       path_10.cubicTo(
           size.width * 0.2335352,
           size.height * 0.7412298,
           size.width * 0.2361790,
           size.height * 0.7440358,
           size.width * 0.2382636,
           size.height * 0.7480371);
       path_10.cubicTo(
           size.width * 0.2426446,
           size.height * 0.7564483,
           size.width * 0.2439301,
           size.height * 0.7689551,
           size.width * 0.2437742,
           size.height * 0.7806591);
       path_10.cubicTo(
           size.width * 0.2436186,
           size.height * 0.7923631,
           size.width * 0.2422367,
           size.height * 0.8039315,
           size.width * 0.2421665,
           size.height * 0.8156384);
       path_10.cubicTo(
           size.width * 0.2420960,
           size.height * 0.8273453,
           size.width * 0.2435774,
           size.height * 0.8398385,
           size.width * 0.2481387,
           size.height * 0.8479118);
       path_10.cubicTo(
           size.width * 0.2527005,
           size.height * 0.8559847,
           size.width * 0.2609325,
           size.height * 0.8573776,
           size.width * 0.2650048,
           size.height * 0.8484462);
       path_10.cubicTo(
           size.width * 0.2707163,
           size.height * 0.8561431,
           size.width * 0.2792296,
           size.height * 0.8556110,
           size.width * 0.2846501,
           size.height * 0.8472186);
       path_10.cubicTo(
           size.width * 0.2867285,
           size.height * 0.8440011,
           size.width * 0.2882717,
           size.height * 0.8397398,
           size.width * 0.2892205,
           size.height * 0.8350460);
       path_10.cubicTo(
           size.width * 0.2892854,
           size.height * 0.8354436,
           size.width * 0.2893516,
           size.height * 0.8358410,
           size.width * 0.2894258,
           size.height * 0.8362352);
       path_10.cubicTo(
           size.width * 0.2909065,
           size.height * 0.8440825,
           size.width * 0.2949028,
           size.height * 0.8509510,
           size.width * 0.2993589,
           size.height * 0.8502125);
       path_10.cubicTo(
           size.width * 0.3059373,
           size.height * 0.8491226,
           size.width * 0.3086879,
           size.height * 0.8341104,
           size.width * 0.3092561,
           size.height * 0.8218795);
       path_10.cubicTo(
           size.width * 0.3098879,
           size.height * 0.8082730,
           size.width * 0.3097532,
           size.height * 0.7945210,
           size.width * 0.3109725,
           size.height * 0.7810532);
       path_10.cubicTo(
           size.width * 0.3121918,
           size.height * 0.7675855,
           size.width * 0.3149461,
           size.height * 0.7540500,
           size.width * 0.3203598,
           size.height * 0.7448167);
       path_10.cubicTo(
           size.width * 0.3257735,
           size.height * 0.7355834,
           size.width * 0.3342586,
           size.height * 0.7317425,
           size.width * 0.3407055,
           size.height * 0.7382930);
       path_10.cubicTo(
           size.width * 0.3452347,
           size.height * 0.7428945,
           size.width * 0.3480523,
           size.height * 0.7515241,
           size.width * 0.3512255,
           size.height * 0.7590909);
       path_10.cubicTo(
           size.width * 0.3543987,
           size.height * 0.7666578,
           size.width * 0.3587229,
           size.height * 0.7739496,
           size.width * 0.3638833,
           size.height * 0.7737577);
       path_10.cubicTo(
           size.width * 0.3691557,
           size.height * 0.7735617,
           size.width * 0.3733942,
           size.height * 0.7655794,
           size.width * 0.3761439,
           size.height * 0.7572153);
       path_10.cubicTo(
           size.width * 0.3788936,
           size.height * 0.7488511,
           size.width * 0.3808707,
           size.height * 0.7393746,
           size.width * 0.3846736,
           size.height * 0.7325837);
       path_10.cubicTo(
           size.width * 0.3894567,
           size.height * 0.7240424,
           size.width * 0.3963412,
           size.height * 0.7211374,
           size.width * 0.4029093,
           size.height * 0.7194256);
       path_10.cubicTo(
           size.width * 0.4094777,
           size.height * 0.7177141,
           size.width * 0.4163059,
           size.height * 0.7167304,
           size.width * 0.4221543,
           size.height * 0.7109155);
       path_10.cubicTo(
           size.width * 0.4280030,
           size.height * 0.7051008,
           size.width * 0.4326222,
           size.height * 0.6927395,
           size.width * 0.4309800,
           size.height * 0.6807948);
       path_10.close();

       Paint paint_10_fill = Paint()..style = PaintingStyle.fill;
       paint_10_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_10, paint_10_fill);

       Path path_11 = Path();
       path_11.moveTo(size.width * 0.5101823, size.height * 0.7860296);
       path_11.lineTo(size.width * 0.5484389, size.height * 0.7860296);
       path_11.cubicTo(
           size.width * 0.5484389,
           size.height * 0.7860296,
           size.width * 0.5529338,
           size.height * 0.8115152,
           size.width * 0.5529338,
           size.height * 0.8115152);
       path_11.cubicTo(
           size.width * 0.5529338,
           size.height * 0.8115152,
           size.width * 0.5818540,
           size.height * 0.8545219,
           size.width * 0.5491617,
           size.height * 0.8545219);
       path_11.cubicTo(
           size.width * 0.5164693,
           size.height * 0.8545219,
           size.width * 0.4611439,
           size.height * 0.8672647,
           size.width * 0.4611439,
           size.height * 0.8513363);
       path_11.cubicTo(
           size.width * 0.4611439,
           size.height * 0.8354078,
           size.width * 0.5013806,
           size.height * 0.8258507,
           size.width * 0.5013806,
           size.height * 0.8258507);
       path_11.lineTo(size.width * 0.5101824, size.height * 0.7860296);
       path_11.close();

       Paint paint_11_fill = Paint()..style = PaintingStyle.fill;
       paint_11_fill.color = Color(0xff2f2e41).withOpacity(1.0);
       canvas.drawPath(path_11, paint_11_fill);

       Path path_12 = Path();
       path_12.moveTo(size.width * 0.7506277, size.height * 0.6644030);
       path_12.lineTo(size.width * 0.7499072, size.height * 0.6159490);
       path_12.lineTo(size.width * 0.7699374, size.height * 0.6097760);
       path_12.cubicTo(
           size.width * 0.7699374,
           size.height * 0.6097760,
           size.width * 0.8033365,
           size.height * 0.5723372,
           size.width * 0.8039521,
           size.height * 0.6137438);
       path_12.cubicTo(
           size.width * 0.8045677,
           size.height * 0.6551504,
           size.width * 0.8156670,
           size.height * 0.7249832,
           size.width * 0.8030952,
           size.height * 0.7252831);
       path_12.cubicTo(
           size.width * 0.7905235,
           size.height * 0.7255831,
           size.width * 0.7822227,
           size.height * 0.6748011,
           size.width * 0.7822227,
           size.height * 0.6748011);
       path_12.lineTo(size.width * 0.7506276, size.height * 0.6644030);
       path_12.close();

       Paint paint_12_fill = Paint()..style = PaintingStyle.fill;
       paint_12_fill.color = Color(0xff2f2e41).withOpacity(1.0);
       canvas.drawPath(path_12, paint_12_fill);

       Path path_13 = Path();
       path_13.moveTo(size.width * 0.6370778, size.height * 0.1242903);
       path_13.lineTo(size.width * 0.6448819, size.height * 0.1608688);
       path_13.lineTo(size.width * 0.6097635, size.height * 0.1836068);
       path_13.lineTo(size.width * 0.5964965, size.height * 0.1351650);
       path_13.lineTo(size.width * 0.6370778, size.height * 0.1242903);
       path_13.close();

       Paint paint_13_fill = Paint()..style = PaintingStyle.fill;
       paint_13_fill.color = Color(0xffffb6b6).withOpacity(1.0);
       canvas.drawPath(path_13, paint_13_fill);

       Path path_14 = Path();
       path_14.moveTo(size.width * 0.4974301, size.height * 0.1160421);
       path_14.cubicTo(
           size.width * 0.5000408,
           size.height * 0.1208989,
           size.width * 0.5016951,
           size.height * 0.1264773,
           size.width * 0.5022546,
           size.height * 0.1323103);
       path_14.lineTo(size.width * 0.5314852, size.height * 0.1813032);
       path_14.lineTo(size.width * 0.5126756, size.height * 0.1982408);
       path_14.lineTo(size.width * 0.4850504, size.height * 0.1467192);
       path_14.cubicTo(
           size.width * 0.4810346,
           size.height * 0.1437823,
           size.width * 0.4776324,
           size.height * 0.1396699,
           size.width * 0.4751284,
           size.height * 0.1347259);
       path_14.cubicTo(
           size.width * 0.4687271,
           size.height * 0.1224605,
           size.width * 0.4685328,
           size.height * 0.1083402,
           size.width * 0.4746924,
           size.height * 0.1031812);
       path_14.cubicTo(
           size.width * 0.4808520,
           size.height * 0.09802217,
           size.width * 0.4910324,
           size.height * 0.1037799,
           size.width * 0.4974301,
           size.height * 0.1160421);
       path_14.lineTo(size.width * 0.4974300, size.height * 0.1160421);
       path_14.lineTo(size.width * 0.4974301, size.height * 0.1160421);
       path_14.close();

       Paint paint_14_fill = Paint()..style = PaintingStyle.fill;
       paint_14_fill.color = Color(0xffffb6b6).withOpacity(1.0);
       canvas.drawPath(path_14, paint_14_fill);

       Path path_15 = Path();
       path_15.moveTo(size.width * 0.5868836, size.height * 0.3559616);
       path_15.lineTo(size.width * 0.6470693, size.height * 0.3554609);
       path_15.cubicTo(
           size.width * 0.6470693,
           size.height * 0.3554609,
           size.width * 0.6744399,
           size.height * 0.4191747,
           size.width * 0.6442624,
           size.height * 0.4844813);
       path_15.lineTo(size.width * 0.6392328, size.height * 0.6182802);
       path_15.lineTo(size.width * 0.7649725, size.height * 0.6103160);
       path_15.lineTo(size.width * 0.7649725, size.height * 0.6681162);
       path_15.cubicTo(
           size.width * 0.7649725,
           size.height * 0.6681162,
           size.width * 0.6015109,
           size.height * 0.6963296,
           size.width * 0.5952239,
           size.height * 0.6804012);
       path_15.cubicTo(
           size.width * 0.5889369,
           size.height * 0.6644727,
           size.width * 0.5763629,
           size.height * 0.5650347,
           size.width * 0.5763629,
           size.height * 0.5650347);
       path_15.lineTo(size.width * 0.5636652, size.height * 0.5933381);
       path_15.lineTo(size.width * 0.5512150, size.height * 0.7982717);
       path_15.lineTo(size.width * 0.5123396, size.height * 0.7982717);
       path_15.cubicTo(
           size.width * 0.5123396,
           size.height * 0.7982717,
           size.width * 0.5037854,
           size.height * 0.5768663,
           size.width * 0.5037854,
           size.height * 0.5768663);
       path_15.lineTo(size.width * 0.5788777, size.height * 0.4000606);
       path_15.lineTo(size.width * 0.5868835, size.height * 0.3559616);
       path_15.close();

       Paint paint_15_fill = Paint()..style = PaintingStyle.fill;
       paint_15_fill.color = Color(0xff2f2e41).withOpacity(1.0);
       canvas.drawPath(path_15, paint_15_fill);

       Path path_16 = Path();
       path_16.moveTo(size.width * 0.6012070, size.height * 0.1542067);
       path_16.lineTo(size.width * 0.6424343, size.height * 0.1498134);
       path_16.lineTo(size.width * 0.6485093, size.height * 0.1551731);
       path_16.cubicTo(
           size.width * 0.6588001,
           size.height * 0.1954666,
           size.width * 0.6615294,
           size.height * 0.2382454,
           size.width * 0.6564805,
           size.height * 0.2801094);
       path_16.lineTo(size.width * 0.6472690, size.height * 0.3564879);
       path_16.lineTo(size.width * 0.5843177, size.height * 0.3701030);
       path_16.lineTo(size.width * 0.5793150, size.height * 0.2240603);
       path_16.lineTo(size.width * 0.6012070, size.height * 0.1542067);
       path_16.close();

       Paint paint_16_fill = Paint()..style = PaintingStyle.fill;
       paint_16_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_16, paint_16_fill);

       Path path_17 = Path();
       path_17.moveTo(size.width * 0.6433182, size.height * 0.1859335);
       path_17.lineTo(size.width * 0.5994190, size.height * 0.1533980);
       path_17.lineTo(size.width * 0.5594709, size.height * 0.1875361);
       path_17.lineTo(size.width * 0.5149017, size.height * 0.1386703);
       path_17.lineTo(size.width * 0.4862933, size.height * 0.1651478);
       path_17.cubicTo(
           size.width * 0.4862933,
           size.height * 0.1651478,
           size.width * 0.5266068,
           size.height * 0.2345337,
           size.width * 0.5472747,
           size.height * 0.2383267);
       path_17.cubicTo(
           size.width * 0.5679427,
           size.height * 0.2421198,
           size.width * 0.6433182,
           size.height * 0.1859335,
           size.width * 0.6433182,
           size.height * 0.1859335);
       path_17.close();

       Paint paint_17_fill = Paint()..style = PaintingStyle.fill;
       paint_17_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_17, paint_17_fill);

       Path path_18 = Path();
       path_18.moveTo(size.width * 0.6372218, size.height * 0.2170455);
       path_18.cubicTo(
           size.width * 0.6372218,
           size.height * 0.2170455,
           size.width * 0.6377147,
           size.height * 0.3308273,
           size.width * 0.6173287,
           size.height * 0.3338374);
       path_18.cubicTo(
           size.width * 0.5969427,
           size.height * 0.3368475,
           size.width * 0.5827623,
           size.height * 0.3296233,
           size.width * 0.5827623,
           size.height * 0.3296233);

       Paint paint_18_fill = Paint()..style = PaintingStyle.fill;
       paint_18_fill.color = Color(0xff000000).withOpacity(1.0);
       canvas.drawPath(path_18, paint_18_fill);

       Path path_19 = Path();
       path_19.moveTo(size.width * 0.4715939, size.height * 0.1590697);
       path_19.cubicTo(
           size.width * 0.4539178,
           size.height * 0.1590697,
           size.width * 0.4351270,
           size.height * 0.1493638,
           size.width * 0.4205502,
           size.height * 0.1305623);
       path_19.cubicTo(
           size.width * 0.4080109,
           size.height * 0.1143896,
           size.width * 0.4003956,
           size.height * 0.09394033,
           size.width * 0.3991069,
           size.height * 0.07298004);
       path_19.cubicTo(
           size.width * 0.3977985,
           size.height * 0.05169599,
           size.width * 0.4031424,
           size.height * 0.03242869,
           size.width * 0.4141547,
           size.height * 0.01872804);
       path_19.cubicTo(
           size.width * 0.4366961,
           size.height * -0.009316725,
           size.width * 0.4762413,
           size.height * -0.004780238,
           size.width * 0.5023077,
           size.height * 0.02884085);
       path_19.lineTo(size.width * 0.5023077, size.height * 0.02884085);
       path_19.cubicTo(
           size.width * 0.5283748,
           size.height * 0.06246275,
           size.width * 0.5312440,
           size.height * 0.1126320,
           size.width * 0.5087039,
           size.height * 0.1406760);
       path_19.cubicTo(
           size.width * 0.4987680,
           size.height * 0.1530380,
           size.width * 0.4855270,
           size.height * 0.1590697,
           size.width * 0.4715939,
           size.height * 0.1590697);
       path_19.close();
       path_19.moveTo(size.width * 0.4512787, size.height * 0.01021215);
       path_19.cubicTo(
           size.width * 0.4393404,
           size.height * 0.01021215,
           size.width * 0.4280725,
           size.height * 0.01531618,
           size.width * 0.4196420,
           size.height * 0.02580521);
       path_19.cubicTo(
           size.width * 0.4103091,
           size.height * 0.03741807,
           size.width * 0.4057886,
           size.height * 0.05389760,
           size.width * 0.4069147,
           size.height * 0.07220982);
       path_19.cubicTo(
           size.width * 0.4080606,
           size.height * 0.09084657,
           size.width * 0.4148870,
           size.height * 0.1091007,
           size.width * 0.4261370,
           size.height * 0.1236111);
       path_19.cubicTo(
           size.width * 0.4491787,
           size.height * 0.1533295,
           size.width * 0.4837559,
           size.height * 0.1578094,
           size.width * 0.5032165,
           size.height * 0.1335988);
       path_19.cubicTo(
           size.width * 0.5226759,
           size.height * 0.1093873,
           size.width * 0.5197620,
           size.height * 0.06551127,
           size.width * 0.4967210,
           size.height * 0.03579208);
       path_19.cubicTo(
           size.width * 0.4836616,
           size.height * 0.01894843,
           size.width * 0.4668962,
           size.height * 0.01021215,
           size.width * 0.4512787,
           size.height * 0.01021215);
       path_19.close();

       Paint paint_19_fill = Paint()..style = PaintingStyle.fill;
       paint_19_fill.color = Color(0xff3f3d56).withOpacity(1.0);
       canvas.drawPath(path_19, paint_19_fill);

       Path path_20 = Path();
       path_20.moveTo(size.width * 0.5187659, size.height * 0.1881111);
       path_20.lineTo(size.width * 0.3786100, size.height * 0.007356782);
       path_20.cubicTo(
           size.width * 0.3711049,
           size.height * -0.002332381,
           size.width * 0.3587836,
           size.height * -0.002464772,
           size.width * 0.3511351,
           size.height * 0.007042529);
       path_20.lineTo(size.width * 0.3350937, size.height * 0.02701626);
       path_20.lineTo(size.width * 0.1989835, size.height * 0.1963618);
       path_20.cubicTo(
           size.width * 0.1940500,
           size.height * 0.2024799,
           size.width * 0.1920794,
           size.height * 0.2112097,
           size.width * 0.1937110,
           size.height * 0.2197086);
       path_20.cubicTo(
           size.width * 0.1953291,
           size.height * 0.2282072,
           size.width * 0.2002499,
           size.height * 0.2348375,
           size.width * 0.2068417,
           size.height * 0.2374170);
       path_20.lineTo(size.width * 0.2234051, size.height * 0.2439314);
       path_20.lineTo(size.width * 0.2741390, size.height * 0.2638555);
       path_20.cubicTo(
           size.width * 0.3148231,
           size.height * 0.2798446,
           size.width * 0.3521140,
           size.height * 0.3086474,
           size.width * 0.3819649,
           size.height * 0.3471562);
       path_20.lineTo(size.width * 0.3863637, size.height * 0.3528274);
       path_20.cubicTo(
           size.width * 0.4125722,
           size.height * 0.3866237,
           size.width * 0.4555927,
           size.height * 0.3871198,
           size.width * 0.4822716,
           size.height * 0.3539185);
       path_20.lineTo(size.width * 0.5178915, size.height * 0.3096066);
       path_20.cubicTo(
           size.width * 0.5445710,
           size.height * 0.2764053,
           size.width * 0.5449624,
           size.height * 0.2219079,
           size.width * 0.5187659,
           size.height * 0.1881112);
       path_20.close();

       Paint paint_20_fill = Paint()..style = PaintingStyle.fill;
       paint_20_fill.color = Color(0xff3f3d56).withOpacity(1.0);
       canvas.drawPath(path_20, paint_20_fill);

       Path path_21 = Path();
       path_21.moveTo(size.width * 0.3120431, size.height * 0.1686997);
       path_21.cubicTo(
           size.width * 0.2876356,
           size.height * 0.2127969,
           size.width * 0.2536472,
           size.height * 0.2400461,
           size.width * 0.2234050,
           size.height * 0.2439314);
       path_21.lineTo(size.width * 0.2068417, size.height * 0.2374169);
       path_21.cubicTo(
           size.width * 0.2002499,
           size.height * 0.2348375,
           size.width * 0.1953291,
           size.height * 0.2282071,
           size.width * 0.1937110,
           size.height * 0.2197086);
       path_21.cubicTo(
           size.width * 0.1920794,
           size.height * 0.2112097,
           size.width * 0.1940500,
           size.height * 0.2024799,
           size.width * 0.1989835,
           size.height * 0.1963618);
       path_21.lineTo(size.width * 0.3350937, size.height * 0.02701624);
       path_21.cubicTo(
           size.width * 0.3466452,
           size.height * 0.06516130,
           size.width * 0.3388265,
           size.height * 0.1203365,
           size.width * 0.3120431,
           size.height * 0.1686997);
       path_21.close();

       Paint paint_21_fill = Paint()..style = PaintingStyle.fill;
       paint_21_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_21, paint_21_fill);

       Path path_22 = Path();
       path_22.moveTo(size.width * 0.5036657, size.height * 0.2705087);
       path_22.cubicTo(
           size.width * 0.5082901,
           size.height * 0.2709651,
           size.width * 0.5127609,
           size.height * 0.2728183,
           size.width * 0.5167040,
           size.height * 0.2759129);
       path_22.lineTo(size.width * 0.5651633, size.height * 0.2776559);
       path_22.lineTo(size.width * 0.5638342, size.height * 0.3068414);
       path_22.lineTo(size.width * 0.5148212, size.height * 0.3019302);
       path_22.cubicTo(
           size.width * 0.5105008,
           size.height * 0.3040634,
           size.width * 0.5058399,
           size.height * 0.3048548,
           size.width * 0.5012285,
           size.height * 0.3042383);
       path_22.cubicTo(
           size.width * 0.4896699,
           size.height * 0.3028958,
           size.width * 0.4808502,
           size.height * 0.2942577,
           size.width * 0.4815242,
           size.height * 0.2849426);
       path_22.cubicTo(
           size.width * 0.4821981,
           size.height * 0.2756275,
           size.width * 0.4921113,
           size.height * 0.2691647,
           size.width * 0.5036656,
           size.height * 0.2705086);
       path_22.lineTo(size.width * 0.5036656, size.height * 0.2705087);
       path_22.cubicTo(
           size.width * 0.5036656,
           size.height * 0.2705087,
           size.width * 0.5036657,
           size.height * 0.2705086,
           size.width * 0.5036657,
           size.height * 0.2705086);
       path_22.close();

       Paint paint_22_fill = Paint()..style = PaintingStyle.fill;
       paint_22_fill.color = Color(0xffffb6b6).withOpacity(1.0);
       canvas.drawPath(path_22, paint_22_fill);

       Path path_23 = Path();
       path_23.moveTo(size.width * 0.5288149, size.height * 0.3066597);
       path_23.lineTo(size.width * 0.5283029, size.height * 0.3064077);
       path_23.lineTo(size.width * 0.5348354, size.height * 0.2723404);
       path_23.lineTo(size.width * 0.5776189, size.height * 0.2720589);
       path_23.lineTo(size.width * 0.5856163, size.height * 0.1881188);
       path_23.cubicTo(
           size.width * 0.5871832,
           size.height * 0.1716583,
           size.width * 0.5982357,
           size.height * 0.1592453,
           size.width * 0.6113242,
           size.height * 0.1592453);
       path_23.cubicTo(
           size.width * 0.6186758,
           size.height * 0.1592453,
           size.width * 0.6257057,
           size.height * 0.1632212,
           size.width * 0.6306125,
           size.height * 0.1701526);
       path_23.cubicTo(
           size.width * 0.6355131,
           size.height * 0.1770762,
           size.width * 0.6378671,
           size.height * 0.1863501,
           size.width * 0.6370689,
           size.height * 0.1955945);
       path_23.cubicTo(
           size.width * 0.6321805,
           size.height * 0.2522432,
           size.width * 0.6230841,
           size.height * 0.3208755,
           size.width * 0.6075103,
           size.height * 0.3261378);
       path_23.cubicTo(
           size.width * 0.6045485,
           size.height * 0.3271380,
           size.width * 0.6010808,
           size.height * 0.3275751,
           size.width * 0.5972792,
           size.height * 0.3275751);
       path_23.cubicTo(
           size.width * 0.5716069,
           size.height * 0.3275751,
           size.width * 0.5307882,
           size.height * 0.3076319,
           size.width * 0.5288149,
           size.height * 0.3066597);
       path_23.close();

       Paint paint_23_fill = Paint()..style = PaintingStyle.fill;
       paint_23_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_23, paint_23_fill);

       Paint paint_24_fill = Paint()..style = PaintingStyle.fill;
       paint_24_fill.color = Color(0xffffb6b6).withOpacity(1.0);
       canvas.drawCircle(Offset(size.width * 0.6112677, size.height * 0.09135542),
           size.width * 0.03702888, paint_24_fill);

       Path path_25 = Path();
       path_25.moveTo(size.width * 0.6356265, size.height * 0.1318449);
       path_25.lineTo(size.width * 0.6324293, size.height * 0.1250965);
       path_25.cubicTo(
           size.width * 0.6324293,
           size.height * 0.1250965,
           size.width * 0.6464321,
           size.height * 0.1131391,
           size.width * 0.6348629,
           size.height * 0.1061992);
       path_25.cubicTo(
           size.width * 0.6232937,
           size.height * 0.09925936,
           size.width * 0.6214654,
           size.height * 0.08229099,
           size.width * 0.6214654,
           size.height * 0.08229099);
       path_25.cubicTo(
           size.width * 0.6214654,
           size.height * 0.08229099,
           size.width * 0.5876719,
           size.height * 0.06995558,
           size.width * 0.5894976,
           size.height * 0.06069965);
       path_25.cubicTo(
           size.width * 0.5913232,
           size.height * 0.05144372,
           size.width * 0.5861472,
           size.height * 0.04488848,
           size.width * 0.5946710,
           size.height * 0.04103058);
       path_25.cubicTo(
           size.width * 0.6031948,
           size.height * 0.03717270,
           size.width * 0.6412495,
           size.height * 0.04102311,
           size.width * 0.6455127,
           size.height * 0.05220632);
       path_25.cubicTo(
           size.width * 0.6497759,
           size.height * 0.06338952,
           size.width * 0.6540411,
           size.height * 0.09424096,
           size.width * 0.6519105,
           size.height * 0.09848346);
       path_25.cubicTo(
           size.width * 0.6497799,
           size.height * 0.1027260,
           size.width * 0.6356266,
           size.height * 0.1318449,
           size.width * 0.6356266,
           size.height * 0.1318449);
       path_25.close();

       Paint paint_25_fill = Paint()..style = PaintingStyle.fill;
       paint_25_fill.color = Color(0xff2f2e41).withOpacity(1.0);
       canvas.drawPath(path_25, paint_25_fill);

       Path path_26 = Path();
       path_26.moveTo(size.width * 0.6260316, size.height * 0.07881936);
       path_26.lineTo(size.width * 0.5916276, size.height * 0.04990103);
       path_26.cubicTo(
           size.width * 0.5916276,
           size.height * 0.04990103,
           size.width * 0.5471784,
           size.height * 0.03255384,
           size.width * 0.5639256,
           size.height * 0.06571719);
       path_26.lineTo(size.width * 0.5780822, size.height * 0.06937861);
       path_26.cubicTo(
           size.width * 0.5780822,
           size.height * 0.06937861,
           size.width * 0.6165943,
           size.height * 0.08074914,
           size.width * 0.6260316,
           size.height * 0.07881937);
       path_26.lineTo(size.width * 0.6260316, size.height * 0.07881937);
       path_26.close();

       Paint paint_26_fill = Paint()..style = PaintingStyle.fill;
       paint_26_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_26, paint_26_fill);

       Path path_27 = Path();
       path_27.moveTo(size.width * 0.6156801, size.height * 0.07226496);
       path_27.lineTo(size.width * 0.6516069, size.height * 0.1065822);
       path_27.cubicTo(
           size.width * 0.6516069,
           size.height * 0.1065822,
           size.width * 0.6726081,
           size.height * 0.05914368,
           size.width * 0.6397268,
           size.height * 0.03562420);
       path_27.cubicTo(
           size.width * 0.6068455,
           size.height * 0.01210474,
           size.width * 0.5859954,
           size.height * 0.04893781,
           size.width * 0.5859954,
           size.height * 0.04893781);
       path_27.lineTo(size.width * 0.5946730, size.height * 0.06069879);
       path_27.cubicTo(
           size.width * 0.5946730,
           size.height * 0.06069879,
           size.width * 0.6156801,
           size.height * 0.07226496,
           size.width * 0.6156801,
           size.height * 0.07226496);
       path_27.close();

       Paint paint_27_fill = Paint()..style = PaintingStyle.fill;
       paint_27_fill.color = Colors.red.withOpacity(1.0);
       canvas.drawPath(path_27, paint_27_fill);

       Paint paint_28_fill = Paint()..style = PaintingStyle.fill;
       paint_28_fill.color = Color(0xffcccccc).withOpacity(1.0);
       canvas.drawCircle(Offset(size.width * 0.7141537, size.height * 0.8247350),
           size.width * 0.04437796, paint_28_fill);

       Paint paint_29_fill = Paint()..style = PaintingStyle.fill;
       paint_29_fill.color = Color(0xffcccccc).withOpacity(1.0);
       canvas.drawCircle(Offset(size.width * 0.8329300, size.height * 0.8197746),
           size.width * 0.04437796, paint_29_fill);

       Paint paint_30_fill = Paint()..style = PaintingStyle.fill;
       paint_30_fill.color = Color(0xffcccccc).withOpacity(1.0);
       canvas.drawCircle(Offset(size.width * 0.7754997, size.height * 0.8809521),
           size.width * 0.04437796, paint_30_fill);
     }

     @override
     bool shouldRepaint(covariant CustomPainter oldDelegate) {
       return true;
     }
   }


   Notice how the Custom Paint widget has placeholders for the Widths? DO NOT modify the weird looking double digit since this is what Flutter Shape Maker uses to calculate the height of the SVG image!

4. Changing SVG Color

   Go to the custom paint class and find parts in the code with a line like this that contains the color you would like to modify:

   For this example, any part of the code that contains this piece of code with the color property set to 0xff6c63ff, will be changed to Colors.red

   example

   Paint paint_27_fill = Paint()..style = PaintingStyle.fill;
   paint_27_fill.color = Color(0xff6c63ff).withOpacity(1.0);
   paint_27_fill.color = Colors.red.withOpacity(1.0);
   canvas.drawPath(path_27, paint_27_fill);


   Make this dynamic by setting a color field inside the FlutterShapeMakerCustomPaint class and passing it down to all instances of the color.

5. Home.dart

   Next, let’s create our custom paint widget and call this class to get our SVG image.

   example

   return Scaffold(
     body: Container(
       width: double.infinity,
       height: double.infinity,
       child: Column(
         mainAxisAlignment: MainAxisAlignment.center,
         children: [
           CustomPaint(
             size: Size(WIDTH, (WIDTH * 0.7894034777284248).toDouble()),
             painter: FlutterShapeMakerCustomPaint(),
           ),
           const SizedBox(height: 24),
           const Text("SVG Using Canvas")
         ],
       ),
     ),
   );


   As the Custom Paint widget code is also generated by Flutter Shape Maker, the double value will vary depending on the image. Mine is unique to the SVG image I used.

   With this in mind, we are only changing the width variable of our SVG.

   example

   CustomPaint(
      size: Size(WIDTH, (WIDTH * 0.7894034777284248).toDouble()),
      size: Size(250, (250 * 0.7894034777284248).toDouble()),
      painter: FlutterShapeMakerCustomPaint(),
   ),


6. Result

   Here is our final result. Isn’t it just crazy how cool this looks?



4. SVG + Shader Mask

Congrats, you made it to this point! It only gets cooler!!

So far we have seen how to add single solid colors to an SVG. However, one may ask, what of Gradient colors? Well, that’s the work of a Shader Mask widget in Flutter

We shall use the Shader Mask Widget to add a gradient to our pancakes SVG and make them look even more delicious!

1. ShaderMask

   ShaderMask() · Widget

   Adds a gradient overlay to our SVG image or any other Flutter Widget

   child · Widget · required

   This is the widget you would like to apply the gradient to. It could be any widget not necessarily SVGs only.

   shaderCallback · Callback() · required

   Where we can return our gradient that we want to apply to our image e.g SweepGradient, LinearGradient and RadialGradient .

   createShader · ShaderMask · required

   This method created a shader from our gradient and passes it to the shaderCallback.

   Show Parameters

   bounds · Bounds

   The bounds property is used to help determine the size constraints of the child which we want to apply the gradient to. in this case, our SVG has the width and height of 200.

   ShaderMask

   ShaderMask(
     shaderCallback: (bounds) {
       return const LinearGradient(
           begin: Alignment.topCenter,
           end: Alignment.bottomCenter,
           colors: [Colors.red, Colors.blue]).createShader(bounds);
     },
     child: SvgPicture.asset(
       'assets/images/undraw_pancakes.svg',
       semanticsLabel: 'Sweet Pancakes',
       width: 200,
       height: 200,
     ),
   )


   For a more in-depth understanding of the Shader Mask widget, read this Medium Article.

2. Result



   Yes, I was amazed myself :)

Conclusion

There you go, here are the multiple ways of working and styling SVG images in your Flutter application. Each method has is advantages and disadvantages so it all trickles down to your own personal preference.

Feel free to leave a comment on what other cool way we can use to style our SVGs. It’s never one way!

Stay safe, and thanks for reading :)

Here is the full code
